BABY-LIN-RC-II

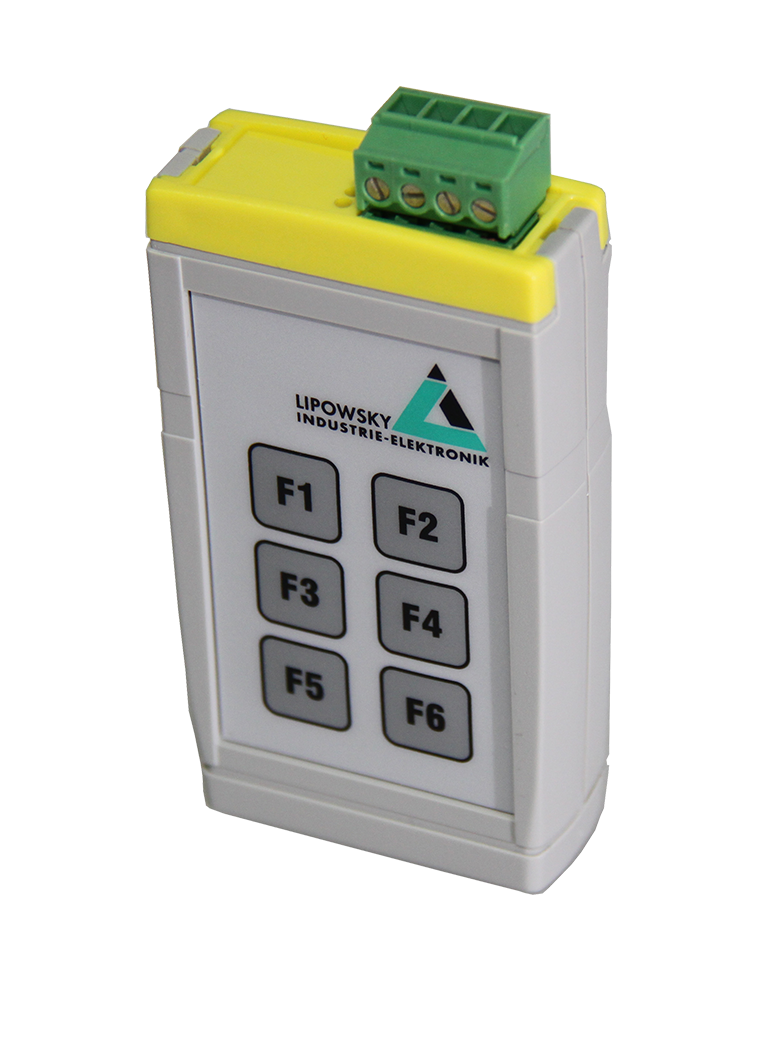

LIN-Bus simulation device with integrated keypad

The Baby-LIN-RC-II is a handy LIN simulator that is perfect for use in stand-alone mode because of its 6 freely configurable buttons and expandable micro SD card. With our LINWorks software package, all necessary LIN nodes and macros can be defined, which are reliably executed on the Baby-LIN-RC-II.

The delivery of a Baby-LIN-RC-II system includes the following components:
  • Baby-LIN-RC-II device
  • USB 2.0 cabel, 1,5m, typ A to typ B-mini
  • A 4-pole plug with screw connection (MC 1,5/ 4-ST-3,81)t
  • Download licence for LINWorks suite (includes LINWorks PC software, USB drivers, sample files and documentation)

Price (EU): 700 € net plus shipping

Price (NON-EU) please contact us for quotation

Request offer
Baby-LIN-RC-II: LIN-Bus simulation device with integrated keypad

Performance overview

Application areas

  • Ideally suited for demonstrations, final tests and service
  • Can be used for restbus simulation, control unit testing, automatic test systems and EOL applications
  • Stand-alone mode with freely programmable command sequences possible
  • Usable with LINWorks software via USB on PC
  • Read and write frame data in real time
  • Supervise the LIN bus in the monitor function without an SDF present
  • Data logging function possible at 100% bus workload

Technical function

  • Freely programmable membrane keypad with 6 keys integrated
  • Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2
  • Galvanically isolated LIN bus interface
  • Simulation of LIN master and LIN slave nodes possible
  • DTL (Diagnostic Transport Layer) support
  • LIN bus controllable via DLL from own programs
  • MicroSD card up to 32 GB
  • On-board voltages from 8 - 28V

Compatibility and system requirements

  • Windows 7/8/10/11 (32/64 Bit)
  • Interface to the DLL library for:
    Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (x86 & x64)
  • Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible

Direct Downloads

arrow down

Baby-LIN-RC-II Datasheet

(637.5KiB) 2022-11-15

arrow down

Getting started guide

(2.3MiB) 2021-11-19

More helpful files available with login:

  • Baby-LIN-RC-II User Manual
  • LinWorks-PCSoftware_CD
  • Firmware update package
See the downloads
